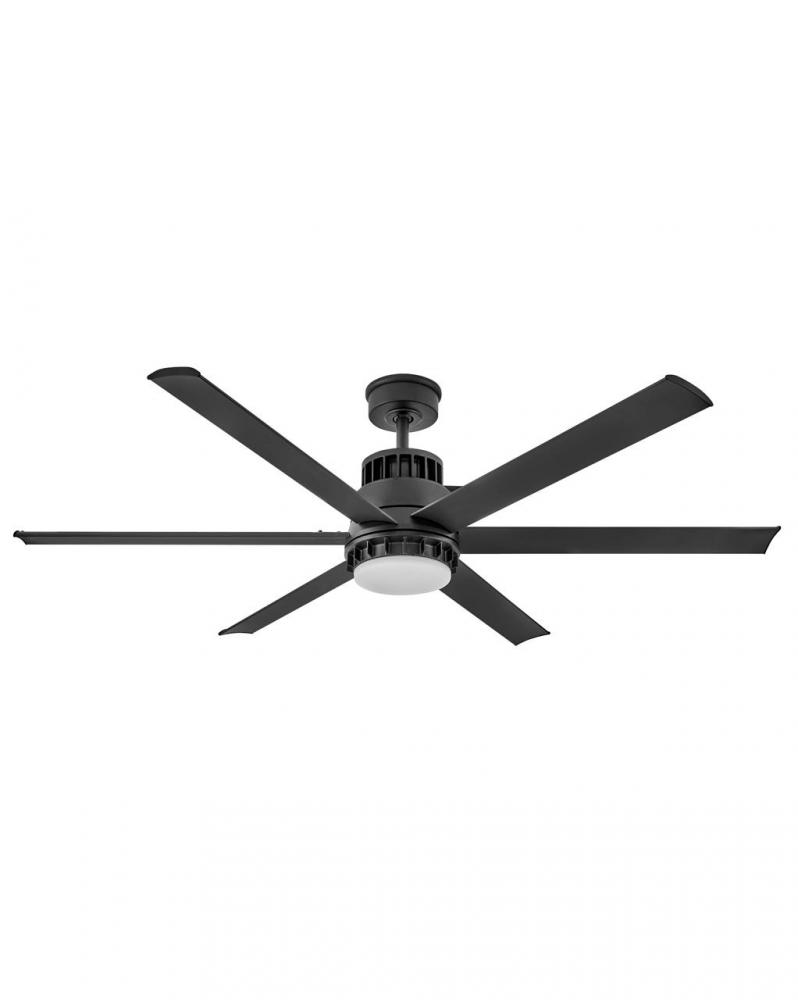

![Draftsman 60" LED Smart Fan](/vendors/757/large/905360fmb-lwd_NoCS40319x01182023NoCE.jpg "Draftsman 60" LED Smart Fan")

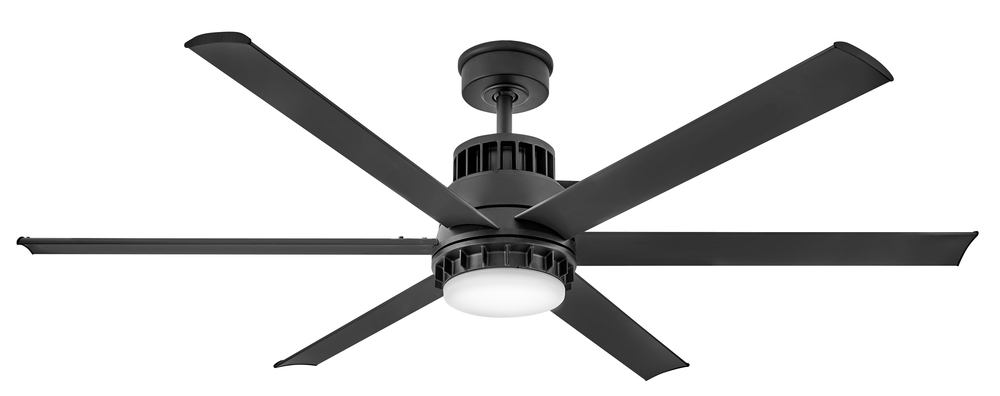

Draftsman 60" LED Smart Fan
Call For Price
- Part Number: 905360FMB-LWD
- UPC: 00640665023411
- Availability: Call for Availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview

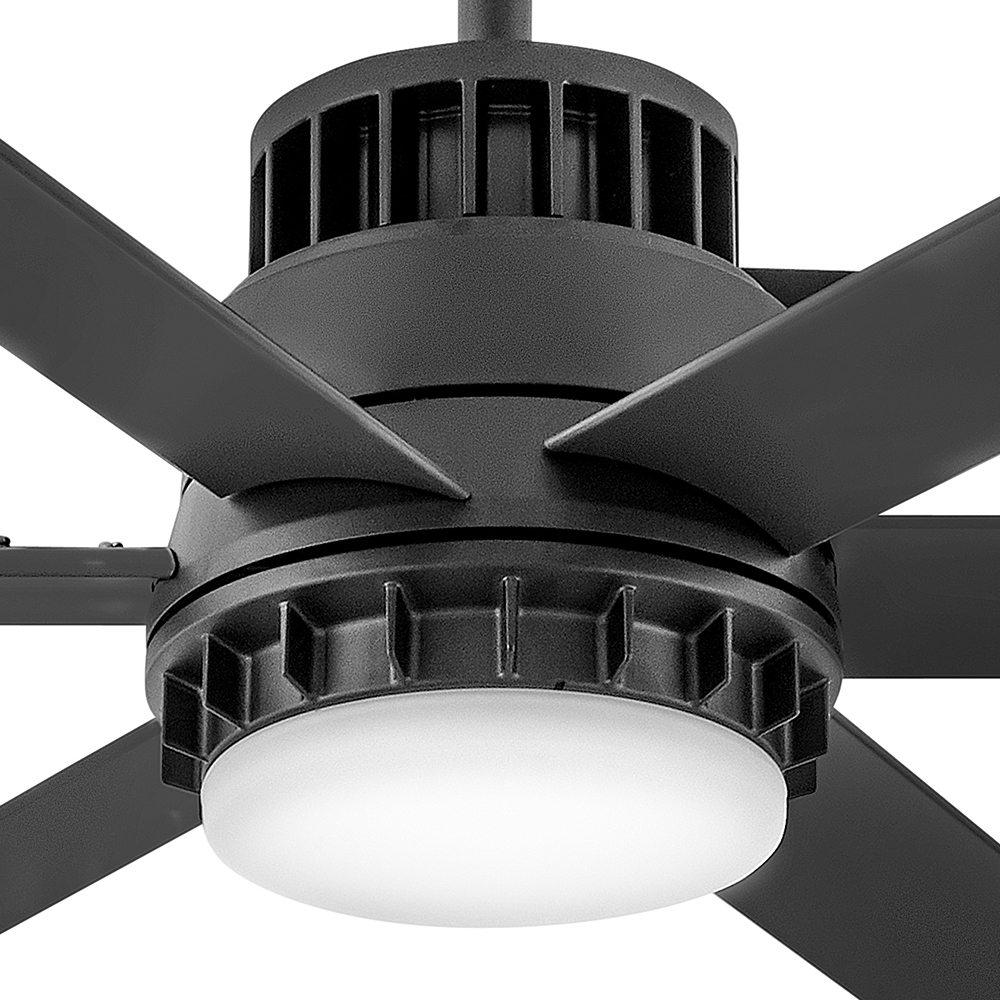

Draftsman's updated transitional form ties perfectly into any space while delivering superior performance. Matte White and Matte Black finish options enhance Draftsman's industrial-inspired design to complement indoor and outdoor spaces alike. With integrated LED and DC motor technology, Draftsman delivers excellent energy efficiency. For lower ceilings, a flush mount kit is an accessory option for easy customization. Operated by the HIRO control or WiFi-compatible with the Hinkley app.
Specifications
Details
Category:
Exterior
Fans
Subcategory:
Exterior Fans
Ceiling Fans with Light
Finish:
Black /vendors/vendorImages black.jpg
Style:
Transitional
Industrial
Option:
Wet Rated
Prop 65 /vendors/vendorImages prop65.png
Number of Blades:
6 Blades
Subfinish:
Matte Black
Location Rating:
Wet Rated
Category:
Fan
Finish:
Matte Black
Style:
Industrial
Family:
Draftsman
Glass:
White Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
8389
Amperage:
0.51
Blade Finish:
Matte Black
Blade Pitch:
12

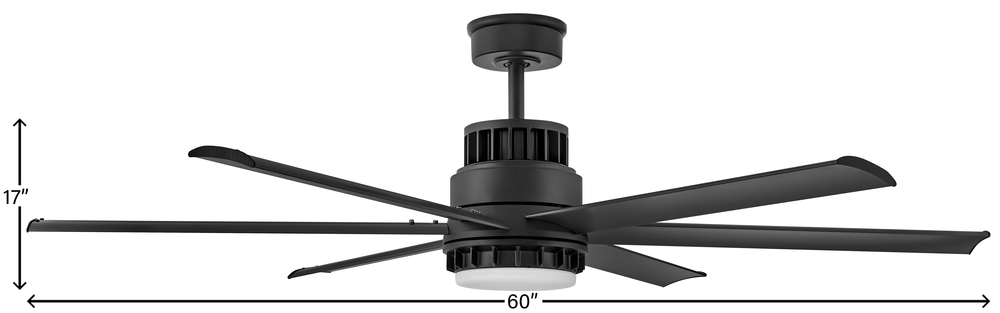

Blade Span:
60
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED

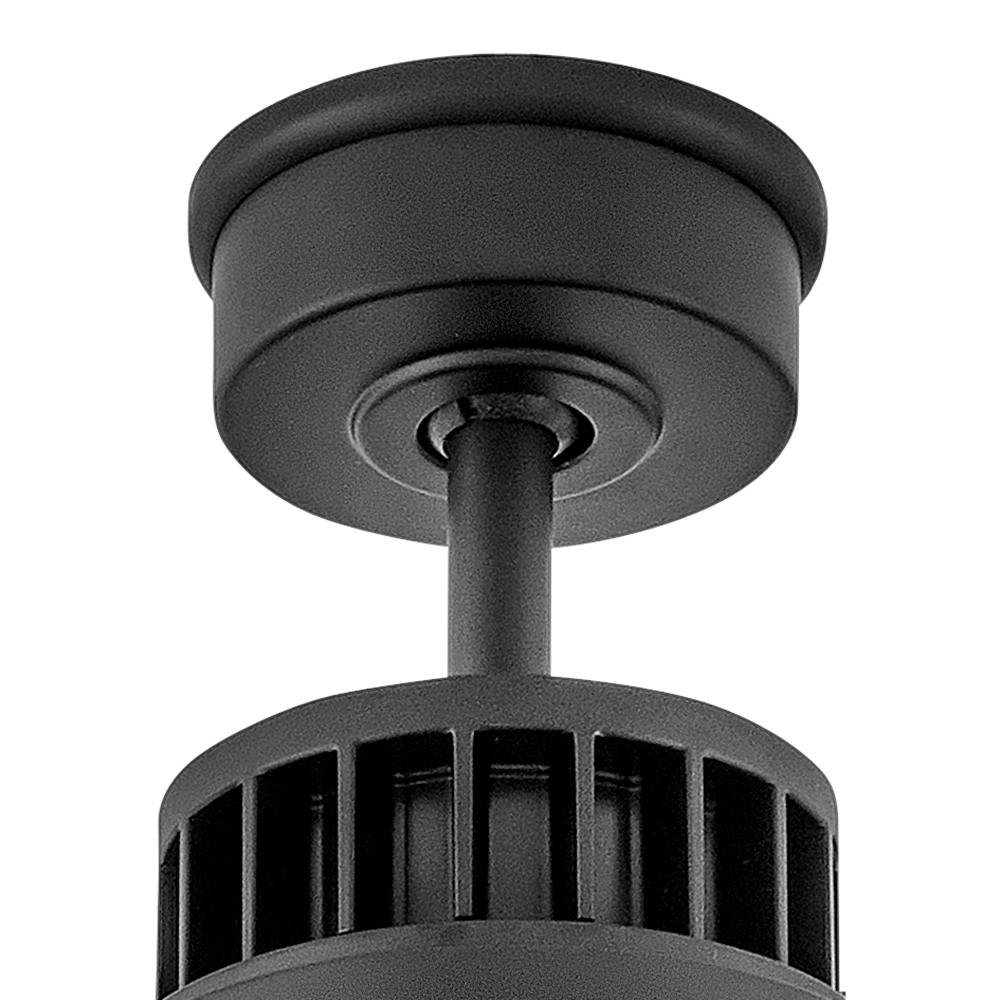

Canopy:
6.5 Dia. x 2.5 D
Introduction Date:
01/01/2023

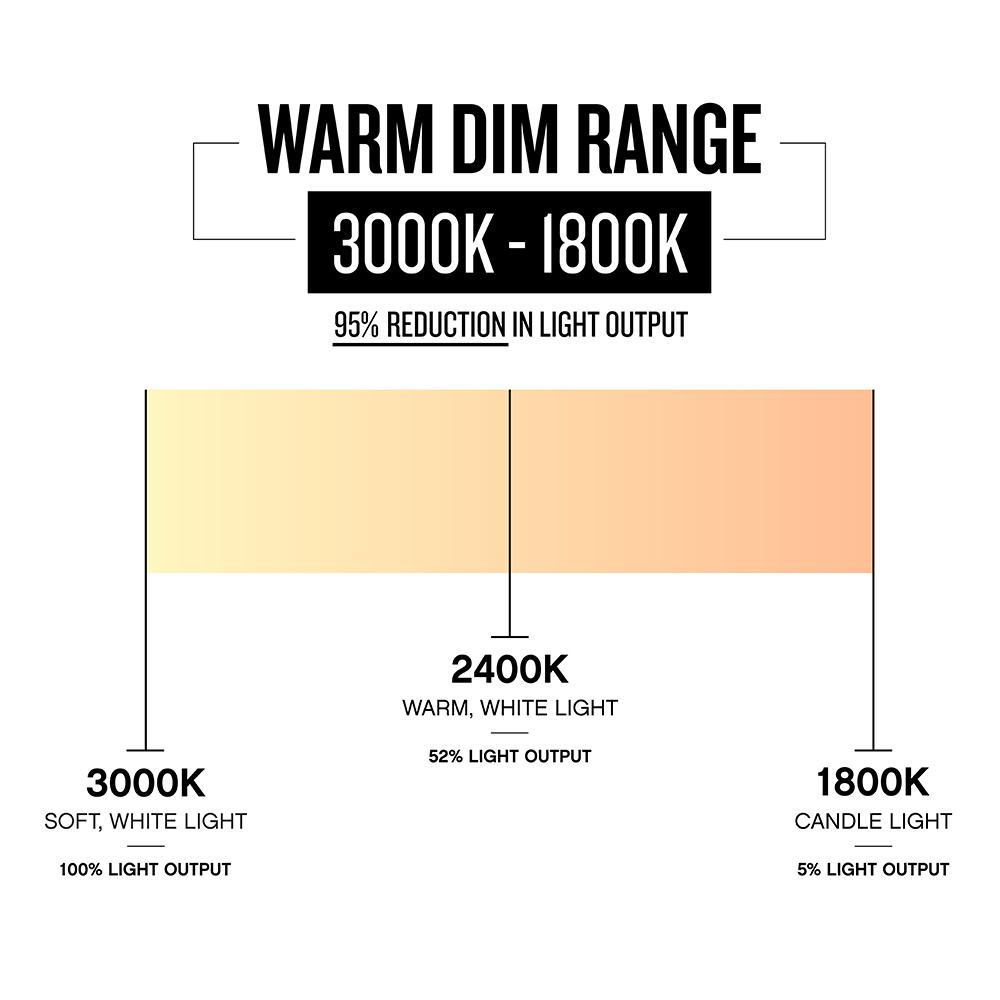

Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Size:
DC 155 x 22 (Ferrite)
Motor Type:
DC
Ship Carton Height:
9
Ship Carton Length:
34
Ship Carton Width:
17
Ship Weight:
33
Vendor Ship Method:
Parcel
Weight:
26
Airflow Avg:
5776
AMPS Avg:
0.3
Avg Energy Use:
23
Blade Material:
Aluminum
Blade Options Available:
No
Blade To Ceiling Height:
12.75
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes

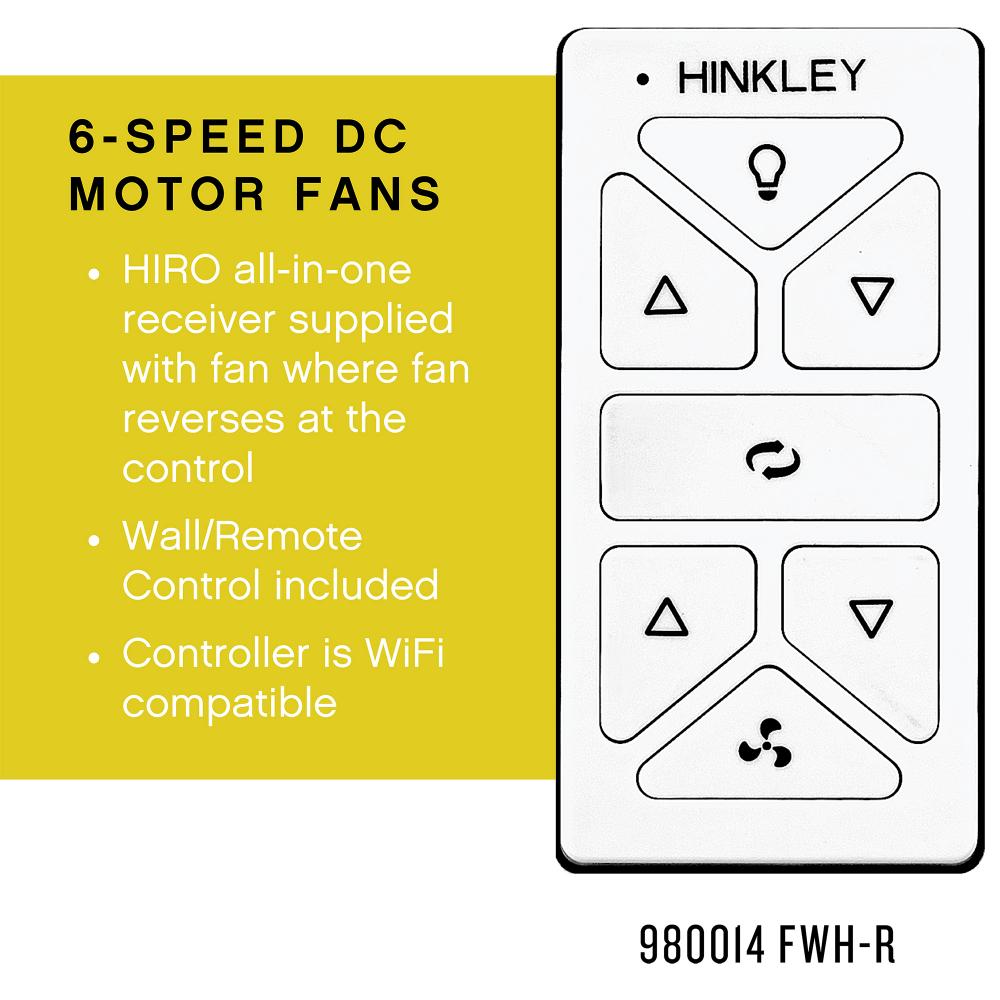

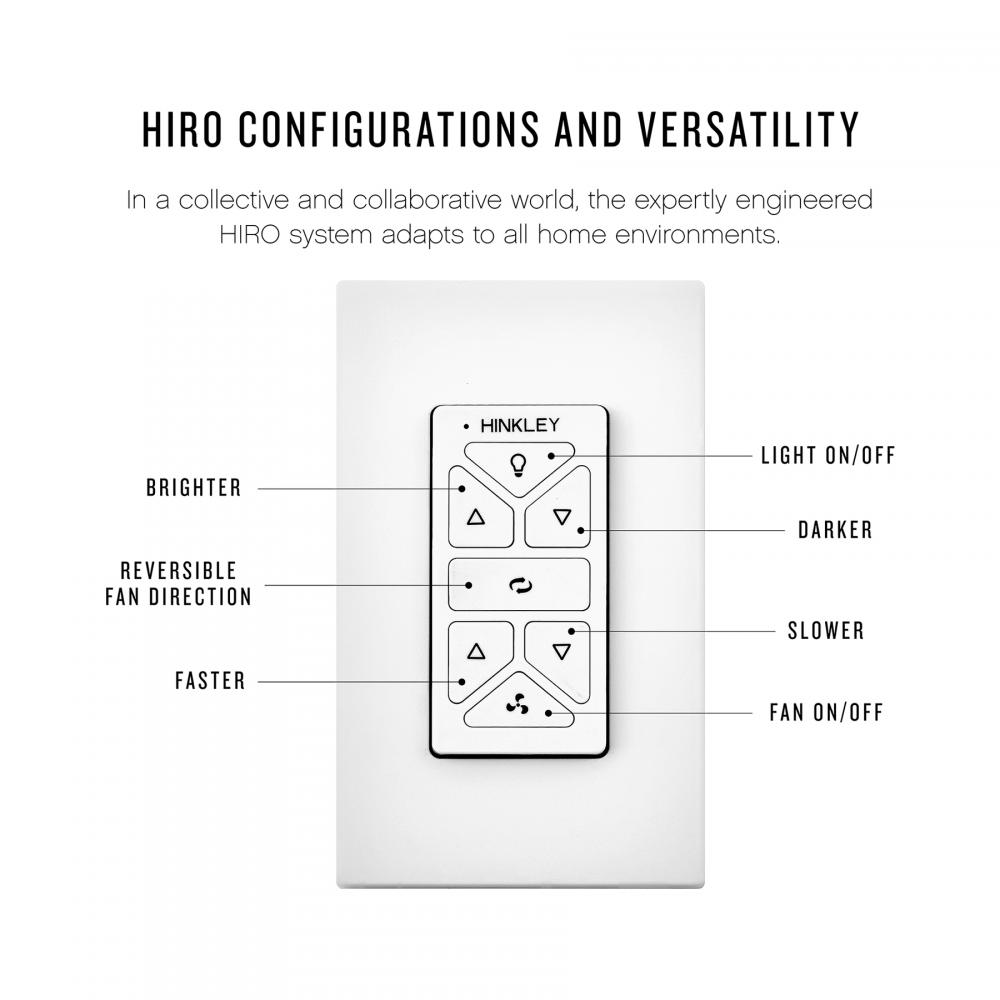

Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
China
Dual Mount:
No
Efficiency Avg:
250
Efficiency High:
255
Energy Cost Avg:
6
Energy Cost High:
9
Energy Use High:
32.9
Fan Control:
Yes
Flush Mount Fan:
No
Incandescent Equivalency:
100 W
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Wet Rated
Max Wattage:
16 W
Motor Fan Speed:
6
Number of Blades:
6
Operating Frequency:
60
Prop 65 Description:
View
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
99
RPMS High:
147
Safety Rating:
UL Approved, C-US Approved
Single Power Switch:
No
Slope:
20
Sloped Ceiling Adaptable:
Yes
Stand By Power:
0.2
Style-2:
Transitional
Title 24:
No
WIFI Control Included:
Yes
WIFI Control Optional:
No
